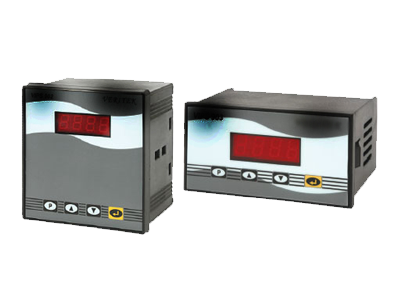

Process Indicator MODEL GIPS 902
FEATURES
=> State of Art Microcontroller Based Design.
=> Relay Out Put for cutoff / Alarm
=> User Programmable Alarm Set Point, Time Delay & CT Ratio.
=> True RMS measurement.
=> Auto Scrolling Facility.
=> Password protection
=> Bar Graph Indication for Load
=> ALARM / TRIP:
-UNDER VOLTAGE
-OVER VOLTAGE
-OVER LOAD
-PHASE SEQUENCE REVERSAL
-PHASE FAILURE
=> Consistent reliability with high accuracy
=> Low cost
=> Thermocouple / RTD / DCV / DC mA
=> Compact size
APPLICATION
=> PLC Panels
=> Automation
=> Feeder / motor
=> Generator
=> Transformer
=> Electrical Dist.
SPECIFICATION
| Aux. Supply | : | 230 /110 VAC 50/60Hz (-20%+15%) |
| Burden on Aux. | : | < 3 VA |
| Range | : | PT100 -70 C to 500 C J 0 – 750 C K 0-1200 C R 0-1750 C S 0-1750 C |
| Signal Input | : | 0-10 VDC, 0-20mA |
| Resolution | : | Temperature Input : 1° C Signal Input : 0.001, 0.01, 0.1 & 1 |
| Temp | : | 20°C to +55°C |
| Humidity | : | < 95% RH ( non condensing) |
| Dimension | : | 96x96x48 mm(LxWxD) 96x48x58 mm(LxWxD) |
| Weight | : | 300 gms |
