Digital Panel Meter

=> State of Art Microcontroller Based Design.
=> 2 Solid state Relay Out Put configurable for cutoff / Alarm setting of any Parameter.
=> Site Programmable CT & PT Ratio.
=> True RMS measurement.
=> Auto Scrolling Facility.
=> Password protection
=> EEprom retains Energy Parameters on power fail.
=> Monitors Import & Export Energy.
=> Computer Interface ( RS 485)
=> Pulse Output for PLC / SCADA interface
=> Optional: Data Logging of all Parameters with Date & Time stamp ( site programmable logging time interval)

=> State of Art Microcontroller Based Design.
=> 4 Line Ultra Bright Red LED display to show phase wise & System Parameters on same page.
=> Site Programmable CT & PT Ratio.
=> True RMS measurement.
=> Auto Scrolling Facility.
=> Password protection
=> EEprom retains Energy Parameters on power fail.
=> Monitors Import & Export Energy.
=> Computer Interface ( RS 485)
=> Pulse Output for PLC / SCADA interface
=> Optional: Data Logging of all Parameters with Date & Time stamp ( site programmable logging time interval).

=> State of Art Microcontroller Based Design.
=> 5 Line Ultra Bright Red LED display to show phase wise Parameters.
=> Site Programmable CT Ratio.
=> True RMS measurement.
=> Four Digit Display.
=> Password protection
=> Optional: Computer Interface ( RS 485)

=> State of Art Microcontroller Based Design.
=> Built in Solid state selector switch for phase selection
=> Super bright LED display for crystal clear long distance day light viewing
=> CT ratios user Programmable through front Key Pad.
=> Built in Transducer
=> Compact Size
=> RPM
=> Run Hour Indication

=> State of Art Microcontroller Based Design.
=> 6 Digit Ultra Bright Red LED Display for Clear long distance day light viewing
=> 10 Digit Counter (2 pages)
=> CT Ratio Site Programmable.
=> True RMS measurement.
=> Direct 60 Amps, available in Din rail enclosure
=> Password protection
=> Computer Interface ( RS 485)
=> Indicates Avg.Kw( Integration time 1 min)
=> EEprom retains Energy Parameters on power fail.
=> Reverse Indication for wrong wiring polarity
Optional
=> Dual Source Energy Meter with individual Energy
=> Registering Counters for Sourcel & Source2

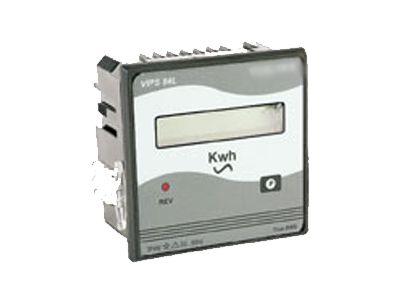

=> State of Art Microcontroller Based Design.
=> 10 Digit LCD Display
=> CT Ratio Site Programmable.
=> True RMS measurement.
=> Resolution 0.1 Kwh
=> Reverse indication for wrong wiring polarity
=> EEprom retains Energy Parameters on power fail.
=> Indicates Avg.Kw( Integration time 1 min)

=> State of Art Microcontroller Based Design.
=> 7 Digit Stepper motor counter
=> CT Ratio Site Programmable trough DIP switch
=> True RMS measurement.
=> Reverse indication for wrong wiring polarity
=> Direct Reading No multiplication factor

=> State of Art Microcontroller Based Design.
=> Built in Solid state selector switch for phase selection
=> Super bright LED display for crystal clear long distance day light viewing
=> All CT ratios user Programmable through front Key Pad
=> Built in Transducer
=> True RMS measurement

=> State of Art Microcontroller Based Design.
=> Built in Solid state selector switch for phase selection
=> Super bright LED display for crystal clear long distance day light viewing
=> Built in Transducer
=> True RMS measurement

=> State of Art Microcontroller Based Design.
=> Built in Solid state selector switch for phase selection
=> Super bright LED display for crystal clear long distance day light viewing
=> All CT ratios user Programmable through front keypad
=> Built in Transducer
=> True RMS measurement

=> Built in Solid state selector switch for phase selection
=> 4 Digit Super bright LED display for crystal clear long distance day light viewing
=> Built in Transducer
=> compact size
=> Auto / Manual Scroll
=> Relay Output for High / Low set point (optional)

=> State of Art Microcontroller Based Design.
=> Built in Solid state selector switch for phase selection
=> 4 Digit Super bright LED display for crystal clear long distance day light viewing
=> CT ratios user Programmable, reduces inventory
=> Built in Transducer
=> Auto / Manual Scroll
=> Relay Output for High / Low set point (optional)

=> State of Art Microcontroller Based Design.
=> Super Bright Red LED Display for Clear long distance day light viewing
=> Three Digit Read out with 0.01 Resolution
=> Built in Transducer Optional

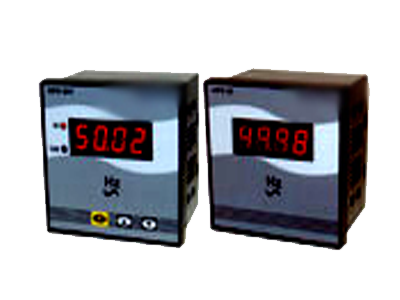

A) With High / Low Frequency Cutoff
=> Hysterisis, Delay & Set point site selectable through front Keypad

=> 4 Digit Super bright LED display for crystal clear long distance day light viewing
=> Built in Transducer
=> compact size
=> Relay Output for High / Low set point (optional)
=> For 110V System PT ratio user programmable

=> 4 4 Digit Super bright LED display for crystal clear long distance day light viewing
=> CT ratios user Programmable, reduces inventory
=> Built in Transducer
=> compact size
=> Relay Output for High / Low set point (optional)
