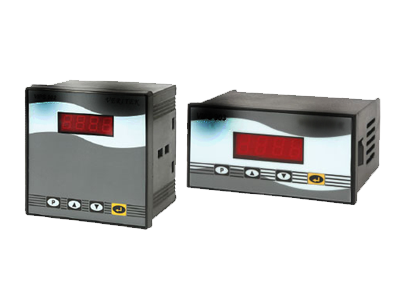

Counter MODEL GIPS 901
FEATURES
=> State of Art Microcontroller Based Design.
=> Relay Out Put for cutoff / Alarm
=> User Programmable Alarm Set Point, Time Delay & CT Ratio.
=> True RMS measurement.
=> Auto Scrolling Facility.
=> Password protection
=> Bar Graph Indication for Load
=> ALARM / TRIP:
-UNDER VOLTAGE
-OVER VOLTAGE
-OVER LOAD
-PHASE SEQUENCE REVERSAL
-PHASE FAILURE
=> Consistent reliability with high accuracy
=> Low cost
=> 6 Digit Totaliser
=> Input Speed upto 1 Khz
=> Compact size
APPLICATION
=> PLC Panels
=> Automation
=> Feeder / motor
=> Generator
=> Transformer
=> Electrical Dist.
SPECIFICATION
| Aux. Supply | : | 90 – 270 VAC 50/60 Hz /DC |
| Burden on Aux. | : | < 3 VA |
| Input Speed | : | 0 – 1 KHz |
| Range | : | 999999 |
| Direction | : | Up counting |
| Input | : | Sensor NPN / PNP / Potential Free Contact |
| Sensor Supply | : | 12VDC , 30 mA in built |
| Relay Contacts | : | Potential Free Contact ( NO&NC) |
| Contact Rating | : | 6 Amps/230 V AC/28 VDC |
| Temp | : | -20°C to +55°C |
| Humidity | : | < 95% RH ( non condensing) |
| Dimension | : | 36x72x73 mm(LxWxD) |
| Weight | : | 250 gms |
